Learn about Shower Installation

Plan the Perfect Bathroom Shower: Space, Codes, and Choices

Installing a shower starts long before the first tile is set or the pan is placed. A thoughtful plan reduces surprises, cuts waste, and aligns your bathroom shower installation with safety and building requirements. Begin by measuring the available footprint and sketching at least two layout options. Common interior dimensions range from about 32 by 32 inches to 36 by 48 inches and larger; many jurisdictions call for a minimum of roughly 30 by 30 inches or about 900 square inches of usable floor area. Aim for at least 24 inches of clear floor space in front of the shower entrance so doors swing safely and bath mats do not bunch.

Consider how you’ll use the shower. A compact alcove unit makes efficient use of narrow rooms, while a corner neo-angle layout can open traffic paths. Walk-in configurations feel airy and are friendlier to mobility needs; curbless entries add accessibility but require subfloor planning for slope and drainage. Water supply and pressure matter, too: many homes operate comfortably at 40 to 60 psi, and low-flow showerheads (often 1.5 to 2.5 gpm) can save water without sacrificing comfort when paired with a well-designed valve.

Drainage requirements drive many technical decisions. Typical stand-alone showers use 2-inch drains to move water quickly and reduce clog risk. The finished floor should slope about 1/4 inch per foot toward the drain to avoid puddling. If you plan a linear drain, verify outlet orientation and ensure the subfloor can accept the required notching or a pre-sloped tray. For ventilation, select a fan that meets at least 50 cfm for intermittent operation or roughly 1 cfm per square foot for many continuous-use standards; effective humidity control protects paint, grout, and framing.

Building codes vary, but several principles are widely accepted. Valves should include anti-scald protection and limit delivered hot water near 120°F. Tempered shower enclosures reduce shatter risk. Waterproof layers must be continuous behind or directly on top of the wall surface. Use this planning phase to decide finishes and hardware, because tile thickness, backer board choice, and glass door style affect rough-in dimensions. A well-detailed plan is one of the top options for keeping a project smooth from day one.

– Map the drain location early to avoid moving joists later
– Confirm door swing and clearances against toilets and vanities
– Reserve blocking for grab bars, niches, and glass anchors

Demolition and Substrate Prep: Dry, Flat, and Waterproof

Once you have a plan, careful demolition sets the stage for dependable bathroom shower installation. Shut off water at local valves or the main and cap supply lines before removing trim or walls. Protect floors beyond the work zone and score caulk lines to avoid tearing finishes you’ll keep. Remove old surrounds and backer down to studs where practical so you can fully inspect the framing, insulation, and any hidden moisture damage. If your home predates modern materials, consider testing suspect flooring or mastics for hazardous substances before disturbing them; when in doubt, consult qualified pros.

Assess the framing. Sound studs should be straight, securely fastened, and dry. Use a long level or straightedge to check for bows and twists; sister or plane as needed because tile prefers flatness. For typical tile sizes, many installers target no more than 1/4 inch deviation in 10 feet, and for large-format tile, closer to 1/8 inch in 10 feet. Replace any discolored or punky wood, and verify the subfloor is tight, free of squeaks, and properly supported at seams. A stiff base reduces grout cracking and keeps glass doors aligned.

Prep the substrate with water exposure in mind. Cement backer board is water-resistant but not waterproof; it needs a moisture management strategy. You can run a continuous sheet membrane on top of the board, or apply a liquid-applied membrane at the proper dry-film thickness, including all seams and corners. Alternatively, some systems use foam-core panels with factory waterproof faces and sealed joints. Choose one method and execute it completely, including careful sealing around valves, the shower arm drop-ear, and wall penetrations.

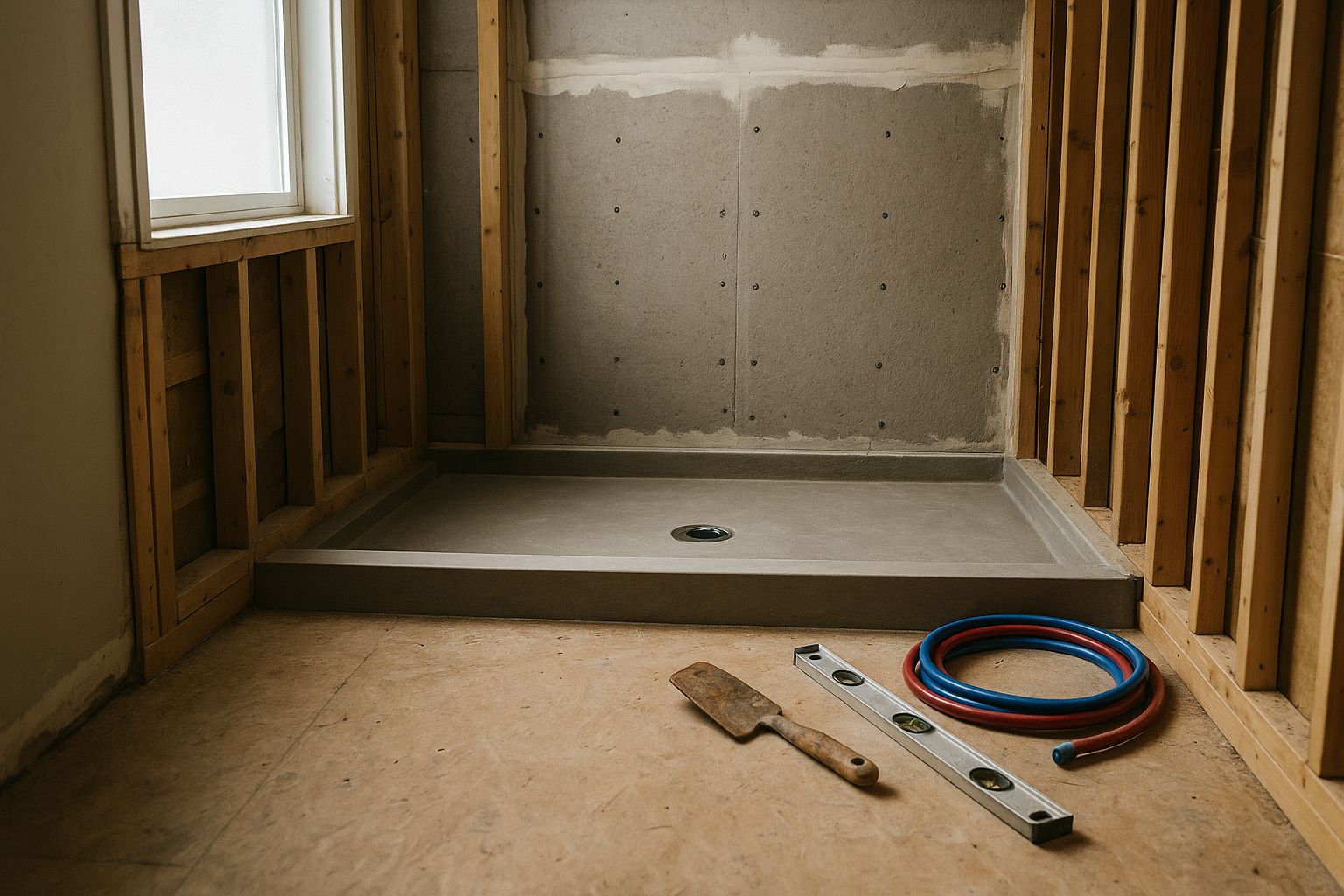

For the floor, many DIYers install a pre-sloped shower pan or tray that directs water to the drain. If you’re building a mortar bed, maintain that 1/4 inch per foot slope consistently and integrate a clamping drain or a bonded flange depending on the system. The curb should be solid and pitched slightly inward; avoid fastening through the top where water lingers. Before closing walls, add solid blocking for future grab bars and shelves, and frame niches with a slight inward pitch so shampoo bottles do not pool water against the back.

– Keep a dedicated debris path to limit dust in the home
– Photograph rough framing and plumbing for future reference
– Use corrosion-resistant fasteners compatible with your backer system

Plumbing Rough-In and Valve Setup: Pressure, Temperature, and Quiet Drains

With framing straight and clean, turn to plumbing. The heart of a comfortable shower is the mixing valve. Pressure-balancing valves help prevent sudden temperature swings if a toilet flushes, while thermostatic valves allow you to set a precise temperature and maintain it through variations in flow. Either can be a top-rated choice when installed to spec. Place the control valve so it is easy to reach without stepping fully under the water; many aim for 38 to 44 inches above the finished floor in a dedicated shower, adjusting for user height. Locate the showerhead roughly 78 to 80 inches above the finished floor for ample clearance.

Decide on pipe materials that suit your skills and local code. Copper is durable and time-tested, though it requires careful cleaning and sweating. PEX is flexible and quick to run, with fittings that can be crimped, clamped, or expanded depending on system type. Keep hot on the left, cold on the right, and follow manufacturer-specific depths so finished trim plates sit flush. Add secure drop-ear elbows for the shower arm and consider stub-outs for a handheld sprayer if desired; such sprayers are well-regarded for accessibility and rinsing.

The drain deserves the same attention as the supply. Confirm trap size and placement, typically 2 inches for stand-alone showers, and ensure the trap weir remains within allowable distance to a vent under your local rules. Sloppy drain alignment makes pans rock, so dry-fit the pan or test your mortar bed with the flange installed before final glue-up. Quiet performance also matters: secure lines to framing with proper supports, add nail plates where pipes pass near stud faces, and maintain gentle bends to reduce hammering and whistling.

Before closing walls or setting tile, pressure test supply lines and flood test the shower base. A common flood test keeps the drain plugged and the pan filled to just below the curb top for 24 hours to check for drops in water level that indicate leaks. Look beneath the bathroom if possible for signs of seepage. Verify anti-scald limits at the valve stop, and measure again from finished surfaces to ensure trims will land without awkward gaps. Careful rough-in blends engineering with empathy: the layout should feel intuitive, safe, and quiet every day.

– Label shutoffs and take photos of valve depth against a ruler
– Wrap threaded connections with suitable tape and dope as recommended
– Slope horizontal runs slightly to drain residual water back toward the valve

Finishes and Enclosures: Tile Craft vs Prefabricated Speed

Installing finishes is where design choices meet durability. You can pursue a fully tiled shower or select a prefabricated surround and pan; both paths can yield outstanding results when detailed correctly. Tile delivers custom sizes, patterns, and niches with nearly endless character. Ceramic and porcelain are popular: ceramic tile materials might range roughly from 3 to 15 dollars per square foot, while many porcelain options run about 7 to 20 dollars per square foot. Natural stone, such as marble or slate, can climb from 10 to 30 dollars or more per square foot and demands meticulous sealing and maintenance. Labor varies widely by region and pattern complexity but often adds 10 to 25 dollars per square foot for standard layouts.

Prefabricated surrounds, usually acrylic or composite, pair with matching pans and go together quickly, making them among the most time-efficient choices for secondary baths or rental turnovers. Many three-piece units allow easy transport through doorways and seal with gaskets and high-quality sealants. Costs for a basic surround-and-pan package can start in the low hundreds and rise above a thousand dollars for thicker materials or integrated shelves. While not as customizable as tile, today’s surrounds often include attractive textures and clean seams that simplify daily upkeep. Panels made of solid-surface materials are another middle path, offering large-format coverage with minimal joints.

Waterproof detailing is the quiet hero behind both systems. For tile, select the correct trowel notch to achieve consistent coverage and back-butter large-format pieces. Use a cementitious grout for classic looks or a pre-mixed or epoxy option for stain resistance; seal cementitious grout periodically, often every one to three years depending on use. Movement joints are essential: include flexible sealant at changes of plane and perimeter edges. For surrounds and panels, follow exact fastening schedules, use recommended sealants, and avoid over-tightening screws that can distort the surface or cause squeaks.

Glass enclosures complete the picture. Framed doors can be economical and help contain spray in compact footprints. Semi-frameless and frameless designs feel open and highlight tile craftsmanship, though they demand accurate wall plumbness and curb pitch. Expect framed options to start in the mid-hundreds, with frameless moving into the higher hundreds or beyond depending on size and hardware. Keep maintenance simple: a daily squeegee habit reduces spotting, and periodic checks of silicone joints and door sweeps prevent leaks from starting small and growing large.

– Large-format tile reduces grout lines and speeds cleaning
– Textured shower pans improve traction under soapy feet
– Clear, low-iron glass showcases tile colors more faithfully than standard glass

Budget, Timeline, and DIY vs Pro: Installing a New Shower Step by Step

Successful projects balance time, money, and skill. A straightforward prefabricated shower replacement, handled by a confident DIYer, might take a long weekend: day one for demolition and framing touch-ups, day two for pan and surrounds, day three for plumbing trims and caulk cure. A custom-tile shower commonly spans one to two weeks, allowing for waterproofing, mortar cures, and grout. Permit fees vary but often range from a few dozen to a few hundred dollars, and inspections help ensure life-safety basics like anti-scald protection and proper venting are in place.

Budgeting benefits from honest line items. DIY prefabricated replacements can land between roughly 600 and 2,000 dollars for materials, depending on quality and glass choices. DIY tile builds often run 1,200 to 4,000 dollars for backer, waterproofing, tile, grout, and glass. Hiring pros raises costs but adds accountability and speed; a professionally built, fully tiled shower—pan, walls, and glass—frequently falls in a broad 5,000 to 15,000 dollar band, with design, region, and structural changes shifting the needle. Remember to reserve 10 to 15 percent for contingencies like subfloor repairs or upgraded ventilation.

Here is a concise step-by-step outline to install a new shower:

– Plan: measure, select layout, confirm drain and door swing
– Permit: file if required and schedule rough and final inspections
– Demolition: remove old finishes safely, cap lines, and clean the space
– Framing: straighten studs, add blocking, and fix subfloor squeaks
– Plumbing rough-in: set valve depth, route supplies, align drain and trap
– Pan or mortar bed: install pre-sloped system and integrate with drain
– Walls: hang backer, tape seams, and apply waterproofing continuously
– Tile or panels: set with proper adhesive, maintain joints, and grout or seal
– Glass: measure after tile or panels, then install with plumb and pitch checks
– Trims and accessories: attach showerhead, trims, shelves, and grab bars
– Seal: apply silicone at changes of plane and let it cure fully
– Test: run water, check for leaks, and verify door sweeps and thresholds

When to hire a pro? If you are relocating drains across joists, recessing a subfloor for a curbless entry, moving structural walls, or unsure about venting, professional help is well-regarded. Likewise, stone tile and epoxy grouts reward practiced hands. Safety is non-negotiable: use GFCI-protected receptacles in bathrooms, protect eyes and lungs during demolition, and follow manufacturer instructions as though they were part of the code—because, in a practical sense, they are the roadmap to a durable result.

Conclusion: A Confident Path to Your New Shower

From sketches to splash, installing a shower blends planning, craft, and a respect for water’s patience in finding every gap. By measuring carefully, managing moisture with continuous waterproofing, placing valves thoughtfully, and choosing finishes that match your schedule and maintenance style, you can deliver a remodel that feels calm on day one and sturdy in year five. Whether you favor the speed of a prefabricated kit or the tailored character of tile, the steps above keep you focused on what matters: safety, comfort, and value. Start with the plan, verify with local rules, and take each phase in sequence; the result is a shower that works as beautifully as it looks.
